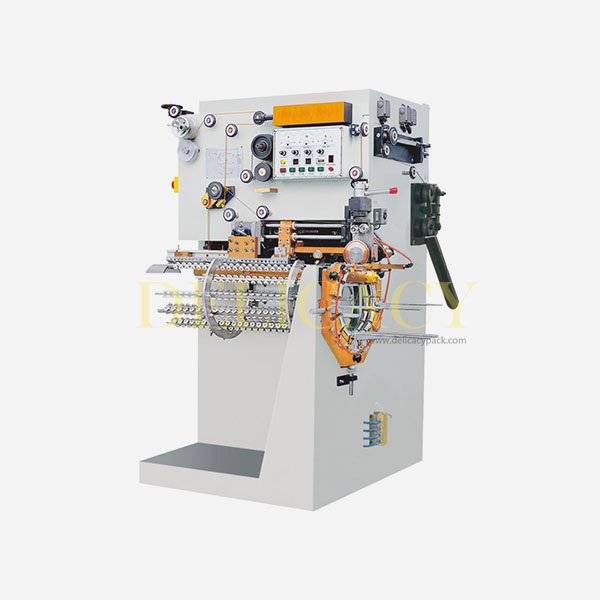

Semi-auto Body Welder Machine
Performance and Configuration
This machine is suitable for the production of metal can body,
including automatic rolling and welding as mechatronics.
Performance and Configuration
This machine is suitable for the production of metal can body, including automatic rolling and welding as mechatronics.
1. Touch panel, simple man-machine interface, automatic fault detection, automatic alarm and troubleshooting system, enable the safe operation of equipment, touch operation on panel for related adjustment.
2. Equipped with Omron, Mitsubishi, Schneider, SMC, AirTAC etc. high-quality electrical components.
3. Electronic static adjustable variable-frequency power inverter, water-cooled welding transformer, adjustable in welding current strength, and frequency continuity.
4. Additional double profiling unit for copper wire, enable the copper wire convey smoother on the lower welding roller, with more uniform welding seam.
5. Equipped with Taiwan brand reducer, the domestic mainstream motor as drive system, to enhance the durability of machine.
6. Can run with the inside/outside coating machine and curing system as production line.
Main Parameters:
Type: DP-30D
Welding Speed: 6-18m/min (max)
Production Speed: 20-30cans/min
Spot Distance: 0.5 ~ 0.85mm
Overlap: 0.6mm-1.2mm
Sheet thickness: 0.16~0.7mm
Body Diameter: 52-300mm
Body Height: 70-500mm
Can Material: tin plate Ni-plate steel-based plate (Max. thickness 0.7mm)
Hardness: T2 – DR8
Copper Wire Diameter: 1.38~1.5mm
Copper Wire Diameter: 1.38~1.5mm
Installed Capacity:36KVA
Welding Frequency:80-280HZ
Power Source:380V±5% 50Hz
Cooling Water >20L/min >400Kpa/cm² <20℃
Dimensions:1300x1100x1800mm
Weights:1200Kg
Semi-auto Body Welder for Tin Can Making Machine is an industrial equipment used for welding the body of tin cans during the can manufacturing process. The equipment is an essential part of the can manufacturing process, where it is used to ensure that the can body is securely sealed and locked in place.
The Semi-auto Body Welder for Tin Can Making Machine works by placing the can body in the machine’s clamping device, and then using a combination of electric current and pressure to weld the can body. The machine is designed to work with different sizes and shapes of can bodies and can be programmed to operate automatically or semi-automatically.
The Semi-auto Body Welder for Tin Can Making Machine is an important piece of equipment in the can manufacturing industry, particularly in industries that require the production of cans in large quantities. The machine can be used to weld the body of cans used for storing food, beverages, and other products.
Overall, the Semi-auto Body Welder for Tin Can Making Machine plays a critical role in ensuring the quality and safety of the canning process. It helps to improve the efficiency and effectiveness of the can manufacturing process, ensuring that the cans are securely sealed and protected, preserving the contents inside for longer periods of time.
