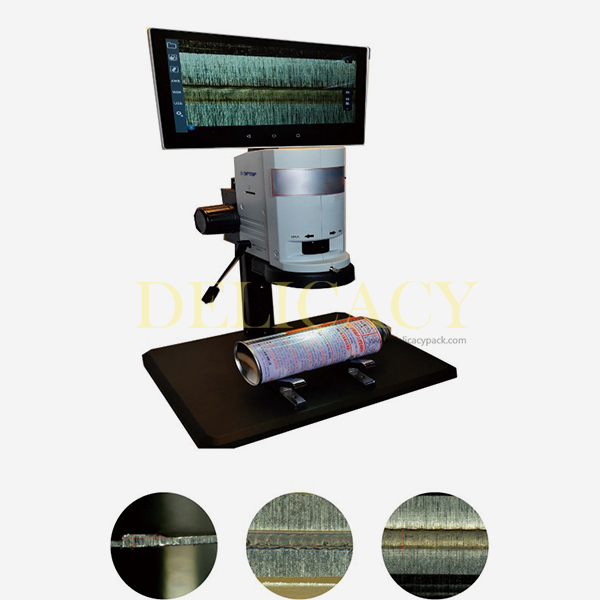

Welding seam image detector
Continuous zoom objective 0.7X-5X, built-in camera module, real-time HDR, built-in OSD menu, 1/3″ COMS 4M, built-in storage 16G, support SD card storage, image output interface: HDMI, USB2.0, Mini USB2.0, support wireless mouse and keyboard
Mirror body group: with screen mirror body set, ips10 inch high-definition touch screen, screen variable angle (-5° to 15°)
Continuous zoom objective 0.7X-5X, built-in camera module, real-time HDR, built-in OSD menu, 1/3″ COMS 4M, built-in storage 16G, support SD card storage, image output interface: HDMI, USB2.0, Mini USB2.0, support wireless mouse and keyboard
Large objective lens: 1X large objective lens, WD105mm 1 4X large objective lens, WD100mm
0.5X large objective lens, WD170mm
Light source: led ring light: 56 led, with dimming knob, switch, color temperature 5000-5500k
Two-zone partition led ligh with switch dimming knob, inner and outer ring partition control, color temperature 5000-5500k
Base vertical arm type large flat base set, working table travel Z axis 225mm, X axis 300-400mm, Y axis 20mm
Other usb line 1 .5m; hdmi line 5m
