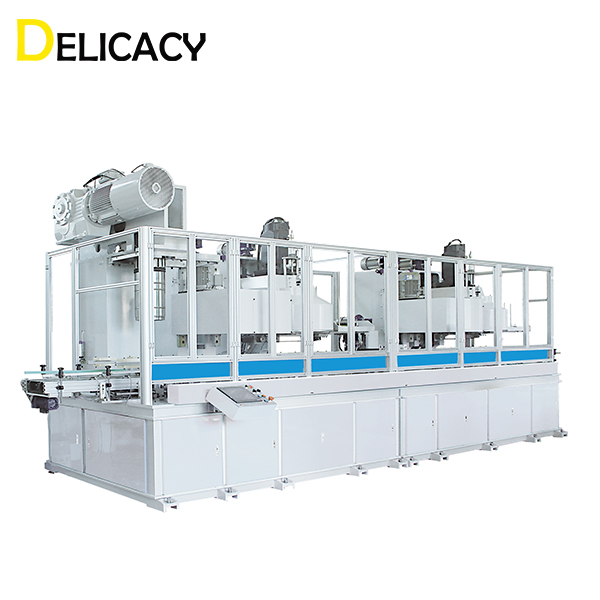

35CPM Tin Can Making Machine Fully Automatic For 18L Closed Barrel

Product Name: 18L Closed Barrel Fully Automatic Production Line
Color: Customized
Automatic: Yes
Certification: CE
Voltage: 3-phase 380V 50Hz
Condition: New
Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Type: Tin Can Making Machine

18L Closed Barrel Fully Automatic Production Line​

Production Process

Expanding&Beading,Bottom Flanging by rollers,Bottom seaming,Top Flanging by rollers,Top seaming

Product Introduction

18L production line for drums is our another masterpiece in recent years.The whole line uses advanced flexible control technology,making the line’s operating performance excellent.The drum body directly goes expanding & beading,which reduces the operations and saves the space.Unique anging by rollers is suitable for double and triple seam.All-in-one seaming head with 6 rollers can use for double & triple seam.This is the one and only product in domestic at present.

Main Technical Parameters


Power of whole line:APP.55KW

Applicable can diameter:Φ220-300mm(need to change moulds)

Voltage:Three-phase four-line 380V(Can be configured according to different countries)

Applicable can height:180-450mm

Air pressure:Not lower than 0.4Mpa

Applicable tinplate thickness:0.28-0.48mm


Applicable tinpla tetemper:T2.5-T3



The 35CPM Tin Can Making Machine is used in the production of closed barrels, which are commonly used to store and transport liquids such as paint, chemicals, and lubricants. The machine is designed to be efficient and reliable, with minimal downtime and maintenance required.

Overall, the 35CPM Tin Can Making Machine Fully Automatic For 18L Closed Barrel offers a high level of automation and productivity, allowing for the efficient and cost-effective production of high-quality tin cans at a fast rate.


We manufacturer and export the following series of products:

► Easy Open End Production Lines

► 2-Piece DRD Can Production Lines

► Metal Caps & Closures Production Lines

► Metal Ends Production Lines

► Aerosol Cone & Dome Production Lines

► Fancy Tins Making Machines

► Metal Cans & Pails Making Machines

► 3-Piece Tin Can Making Machines


We are ready to develop long-term and good relationship with overseas customers.

We will keep on providing modern and advanced machines to bring greater value-added benefit for our customers.

Warm welcome friends from all over the world to visit and instruct us!
