Induction Oven For Tin Can Body Making Machine
-Stepless speed regulation
-Adjustable in conveying speed
-Applicable for different sizes of can bodies
-Only need to change height of conveyor for changeover of can sizes.
-Stepless speed regulation
-Adjustable in conveying speed
-Applicable for different sizes of can bodies
-Only need to change height of conveyor for changeover of can sizes.
| Burner power | 1-2KW |
| Burner heating speed | 4m-7m/min |
| Suitable small can diameter | φ45mm-φ176mm |
| Suitable big can diameter | φ176mm-φ350mm |
| Can height | 45mm-600mm |
| Cooling water | ＞0.4MPa,12-20℃，40L/min |
| Air consumption | ≥50L/min＞0.5Mpa |
Conveyed by Single belts(sutomatic lifting) Range of can diameter :Φ45mm-Φ180mm
Conveyed by updraft double belts Range of can diameter :Φ200mm-Φ350mm
Conveyed by lower double belts(sutomatic lifting) Range of can diameter :Φ153mm-Φ300mm
Welding seam downwards,conveyed by double belts

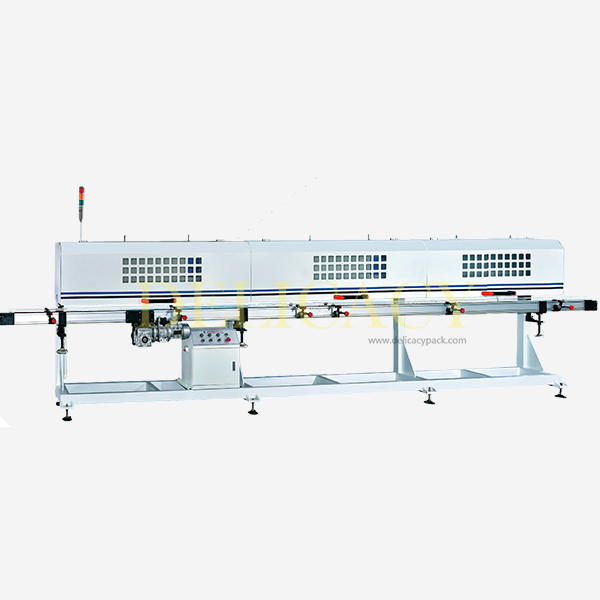

Can Body High Frequency Induction Oven Curing System For Can Making Machine From Factory Outlet
It works based on the SPWM technology, generating vortex heating by A/C on the welding seam area for curing . Induction oven is characteristic with energy saving , environment-friendly & safety. It fits different can sizes and different speed of production line.
This curing system applies to the curing of the indside and outside welding seam, matched with can body welder with a highest production capacity of 500 cans/min and welding seam coating machine as high speed production line.
Product Feature:
* Heater quantity can be adjusted according to custom requirement
* Our machine is automatically diameter adjustment by touch panel
* Low energy comsumption
* Touch panel control
* Latest technology rare earth application on heater
* PID (proportional integral differential coefficient) control on power output
* Synchronized conveying speed.Fully digitalized
* Self-protection system and auto can kick out system if machine jam
* Our machine is automatically diameter adjustment by touch panel
* Low energy comsumption
* Touch panel control
* Latest technology rare earth application on heater
* PID (proportional integral differential coefficient) control on power output
* Synchronized conveying speed.Fully digitalized
* Self-protection system and auto can kick out system if machine jam
After repeated testing, research and transformation, the main feature of this machineis energy saving. Each burner needs only 1-2KW, easy to operate.
It uses Japanese Omron color touch control terminal (touch screen), Japanese OmronPLC programmable controller, Japanese Omron intermediate relay; French Schneiderinverter, French Schneider contactor and so on.

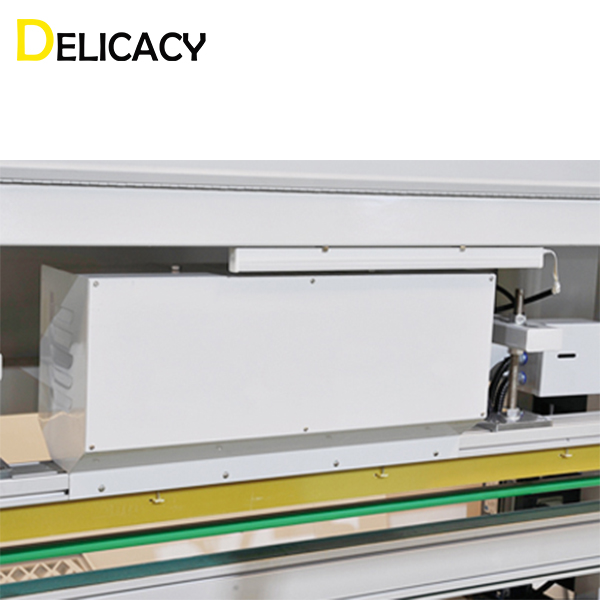

The transmission supporter adopts a special custom-made heavy-duty aluminumalloy; it is also equipped with an imported wear-resistant belt with no seam beltthe aluminum alloy and the imported belt contact surface is attached with awear-resistant strip of 1mm to reduces friction to improves durabilityThe conveying adopts the lower conveying type, which is easy to operate and ensuresthat the distance between the weld and the furnace head is unchanged. lt only heatsthe repair area and does not generate heat around the periphery. Each burner can beset intelligently and heated individually or continuously.
