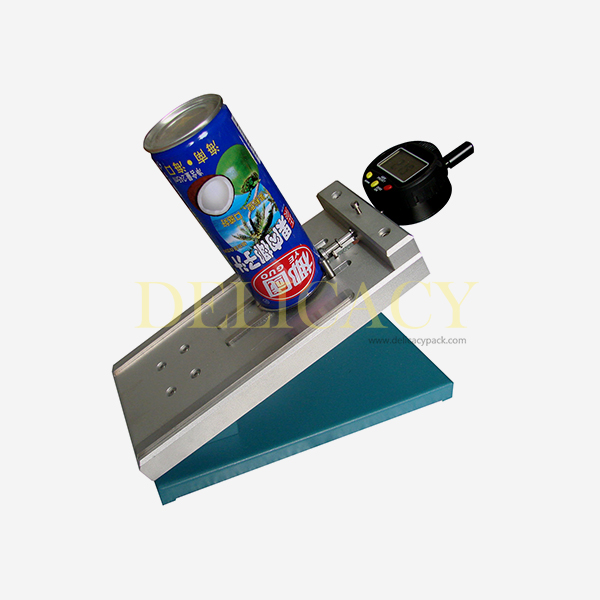

Flange width tester
Test range of digital display: 0〜10mm
Resolution of reading: 0.01mm
Indication accuracy: ±0.01mm
Total indication error: 0.03mm
Test table: 183mmx 100mm
Test table rotatable: 0°〜50°
Testable can body diameter: ≤Φ160×240
Performs dege width testing when the can body is processed.For diameters less than 160 mm tank flange detection is convenient
Theinstrument adopts the solid base and the good steel arm to ensure the stability to measurement,the LCD digital display dial
indicator display flange width .The measurement results are accurate and reliable. At thesame time measuring instrument design cover rotary unique functions,to facilitate the stabilityofdifferen diametertank park.
Test range of digital display: 0〜10mm
Resolution of reading: 0.01mm
Indication accuracy: ±0.01mm
Total indication error: 0.03mm
Test table: 183mmx 100mm
Test table rotatable: 0°〜50°
Testable can body diameter: ≤Φ160×240
