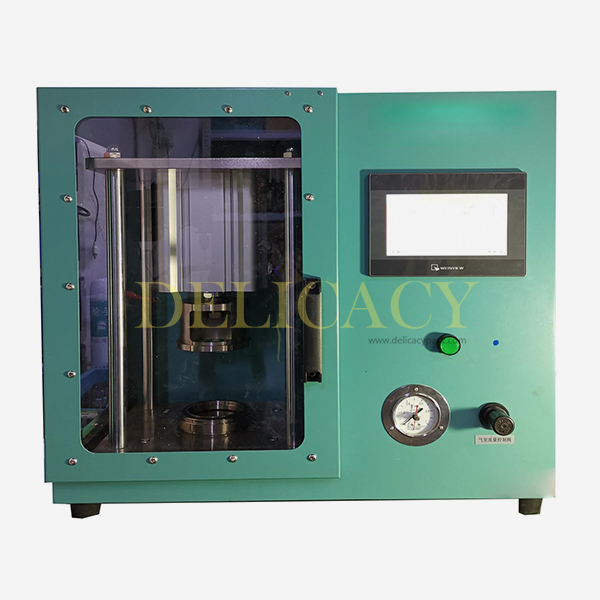

End pressure tester

The “DE-2” can end pressure tester is used to detect the maximum pressure that can be withstood before the uncapped can lid begins to deform. Has a variety of functions: “slightly abrupt change in the can lid”, “beverage tank flying tongue test”, “etching line pressure explosion tesf. lt is suitable for detecting cans of Φ30mm- Φ109mm, users can choose the corresponding can lid clamp as needed.

“DE-2″ can lid pressure tester” performs standard equipment in the canning industry

Suitable for detecting cans of Φ30mm- Φ109mm

Easy to operate

Data can be sent to SPC via RS232C (Bluetooth or wlan module, optional) data output

Adopt plc touch screen display control system to automatically collect data

Adjustable pressurization speed, boost curve can be set

High precision

With calibration port, aspect calibration, full pressure adjustment without additional pressurization, adjustable pressure sensing sensitivity.
When multiple sample measurements are completed, individual measurement results can be consulted, and the average, maximum, and minimum values are automatically calculated.

There are a variety of safety facilities (overload protection, safe access, overpressure automatic decompression)

Range: 0-900 Kpa (ie 0.9Mpa) Indexing: 1 KPa
Accuracy: 0.5% fs Data cable: RS232C (optional for Bluetooth or wlan module)
Unit: KPa Air source: 0.7 Mpa
Power supply: 115/230V, 50Hz Size: 650 x 320×580 mm
Weight: 55kg
