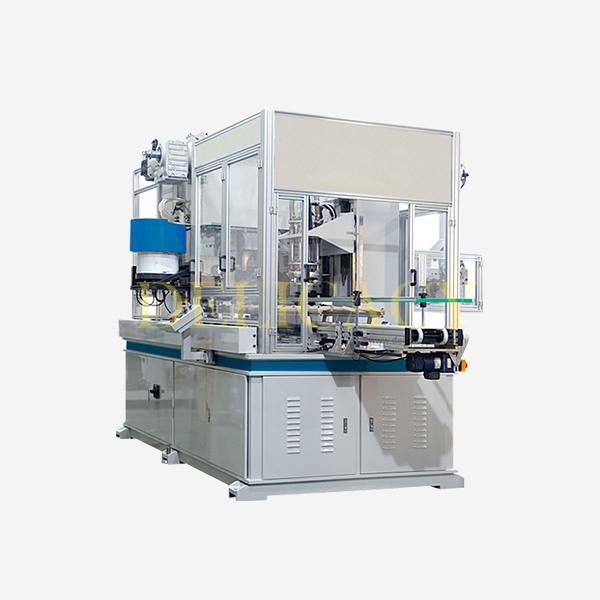

Ear Lug Welder Machine For Tin Can Welding Machine
Advanced flexible control & welding system
Mechanical cam conveying system
Balance smoke eliminating system
Characteristics:
Advanced flexible control & welding system
Mechanical cam conveying system
Balance smoke eliminating system
Full wire handle machine for pail can making
This machine is using mechanical cam transmission, cam conveying, with advanced control system. It makes the machine run flexibly and reduce mechanical impact. The forming of the wire handle is flat U shape hook and fold inside to make the wire handle not easy to come out and not pierce through pail body. Locating by sensor& mechanical combined, it makes the hook insert more precisely. It uses V-shape bearing to correct the wire from wire feeding rollers to forming.making the changeover of wire more convenient. It has the break-point menory function, no need to take out the pails after troubleshooting, which can save time & labor, and make it more stable and firmed. This machine can be perfectly connected with the automatic production line for pails.
Product Paramenters
No | Item | Data |
1 | Capacity | 40-45cpm |
2 | Applicable can diameter | 220-300mm |
3 | Applicable height | 200-500mm |
4 | Distance between beading and ears | ≥20mm |
5 | Wire diameter | 3.5-4.0mm |
6 | Air pressure | ≥0.6Mpa |
7 | Connecting height | 1000±20mm |
8 | Distance between top end and ears | 35+(L-180)–65+ (L-180)mm |
9 | Weight | app. 5T |
10 | Power | 15KW |
Our customers are major in food, beverage, aerosol, painting etc. metal packing industrial. Our machines are now widely used in over 20 countries.
As a rich experienced manufacturer & exporter in this field, we listen to customers’ needs, suggest the most suitable solution and accompany them throughout the entire decision-making process.
We manufacturer and export the following series of products:
► Easy Open End Production Lines
► 2-Piece DRD Can Production Lines
► Metal Caps & Closures Production Lines
► Metal Ends Production Lines
► Aerosol Cone & Dome Production Lines
► Fancy Tins Making Machines
► Metal Cans & Pails Making Machines
► 3-Piece Tin Can Making Machines
Why choose us?
1.1- We have over 20 years experience on machinery making .
1.2- We sale good quality machines around the world with good service and got high reputation from our customer. Welcome to visit our factory!
