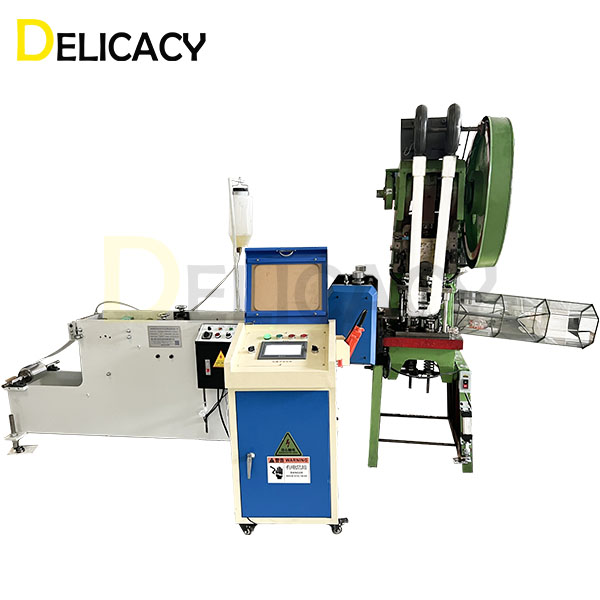

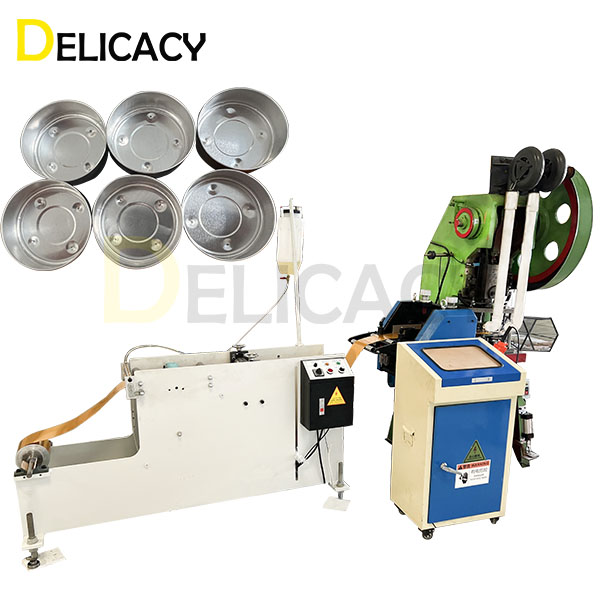

Automatic Aluminium Foil Cap Making Line

Automatic aluminium foil cap production line

Automatic coil feeding system, customized 25T high-precision press machine and 2-cavity mold (with air blowing system and material outlet cage)

Speed: about 250 caps/min

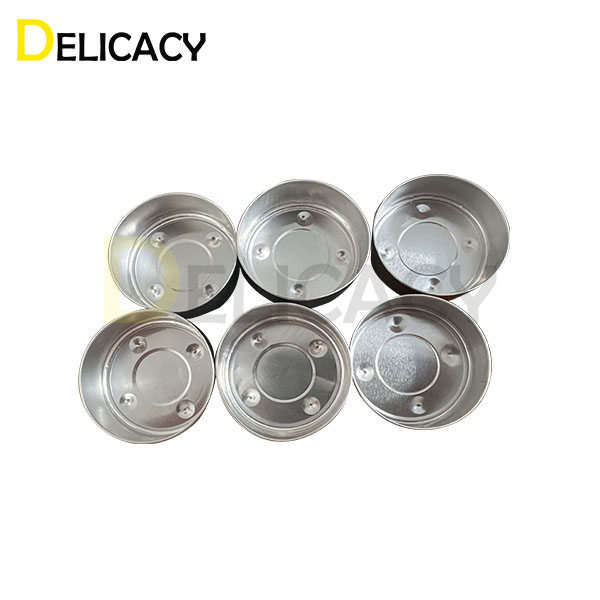

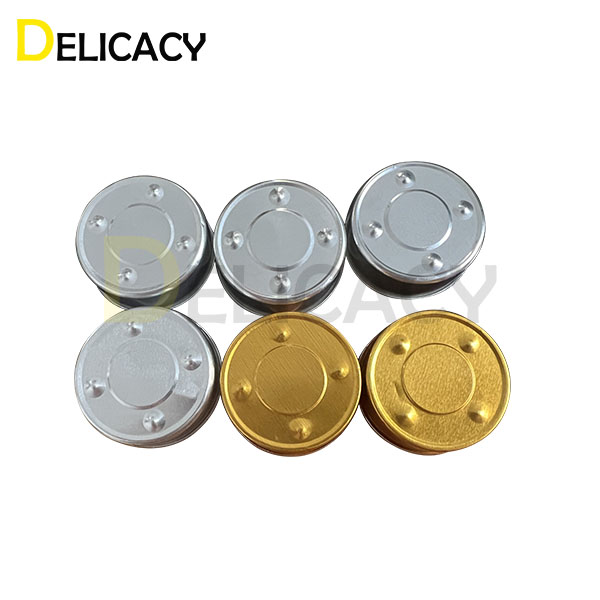

Automatic aluminium cap production line (Φ38*H12mm).
Max. production speed: 240 caps/min.

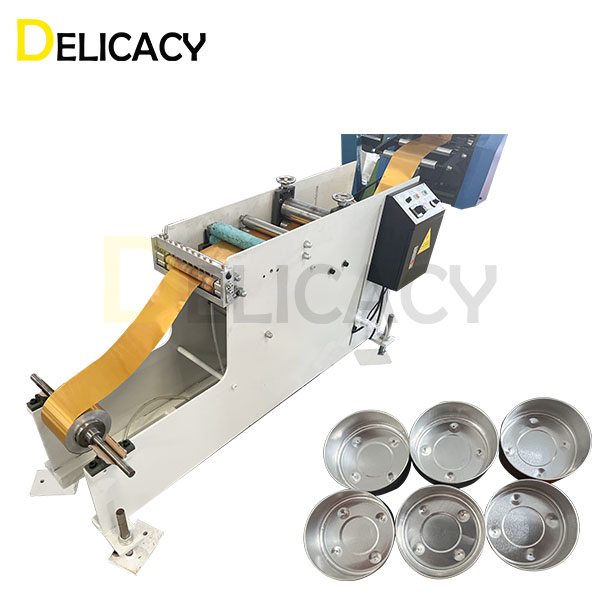

Automatic coil feeding system
Automatic coil feeder for feeding alumimium foil coils into press for
automatic blanking operation

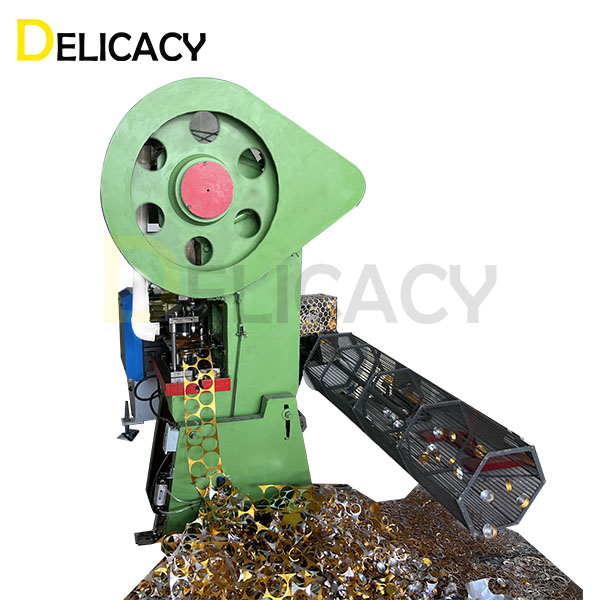

Press
Customized 25T high-precision power press
Nominal force: 25T
Slider stroke: 80mm
Stroke times: 120 times/min
Max. die height: 250mm
Die height adjustment: 50mm
Worktable dimension: 400*700mm
Main motor power: 3Kw

Toolings
Double-cavity toolings for automatic production of D33H16mm
round aluminium foil cap blanking with outside curling operation
With automatic air blowing system and material outlet cage
