Automatic 4L Rectangular Can Top Handle Making Line
Product Name: Automatic 4L Rectangular Can Top Handle Making Line
Color: Customized
Automatic: Yes
Certification: CE
Voltage: 3-phase 380V 50Hz
Condition: New
Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Type: Tin Can Making Machine
Automatic 4L Rectangular Can Top Handle Making Line

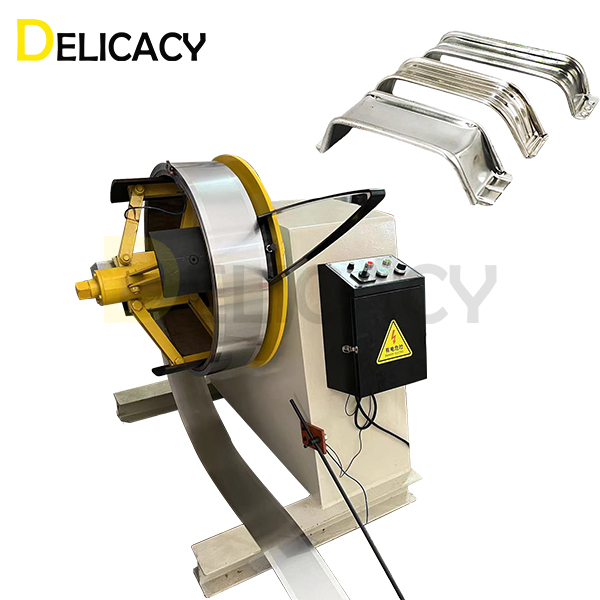

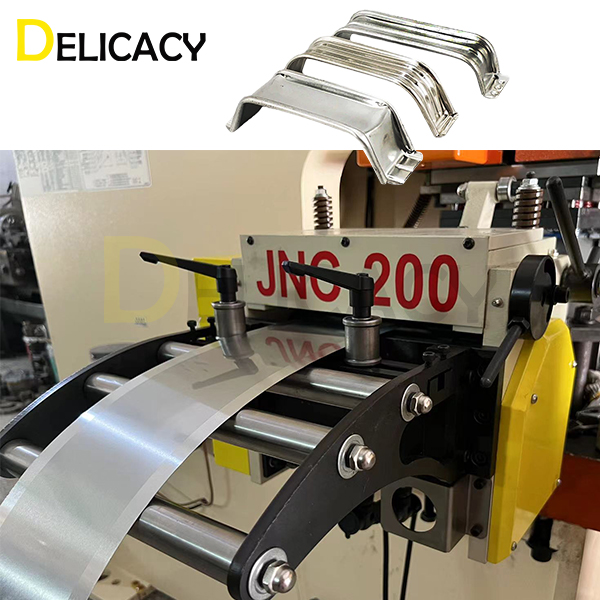

Automatic coil feeding system
For automatically feeding of tinplate coils into press machine for handle punching peration With material rack

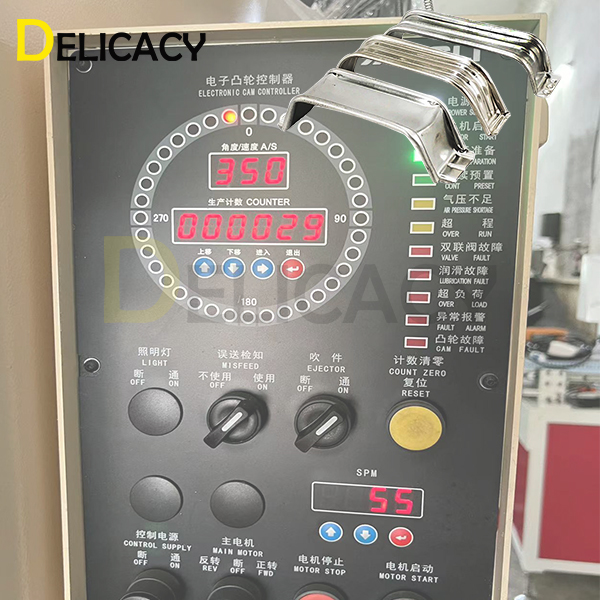

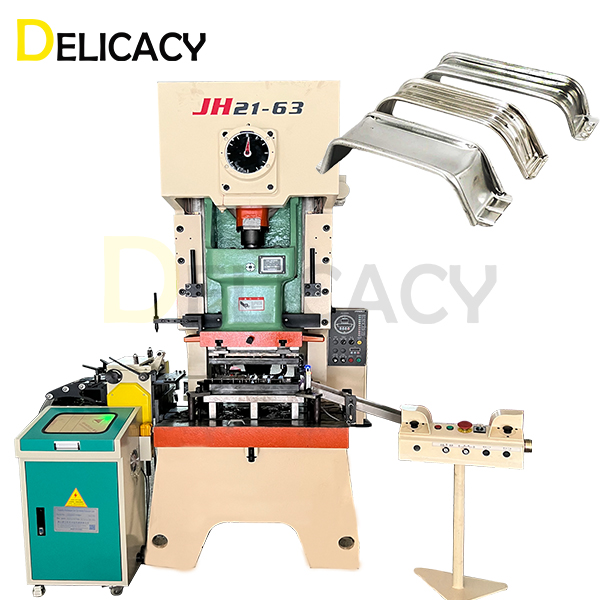

Pneumatic press machine
High precision pneumatic press machine
Model: JH21-63
Nominal pressure: 630KN
Slide stroke: 120mm
Max. stroke times: 60-80 strokes/min
Max. die height: 300mm
Die height adjustment: 80mm
Total power: 5.5Kw
Dimension: 1580*1205*2580mm
Total weight: about 4.2T
Model: JH21-63
Nominal pressure: 630KN
Slide stroke: 120mm
Max. stroke times: 60-80 strokes/min
Max. die height: 300mm
Die height adjustment: 80mm
Total power: 5.5Kw
Dimension: 1580*1205*2580mm
Total weight: about 4.2T

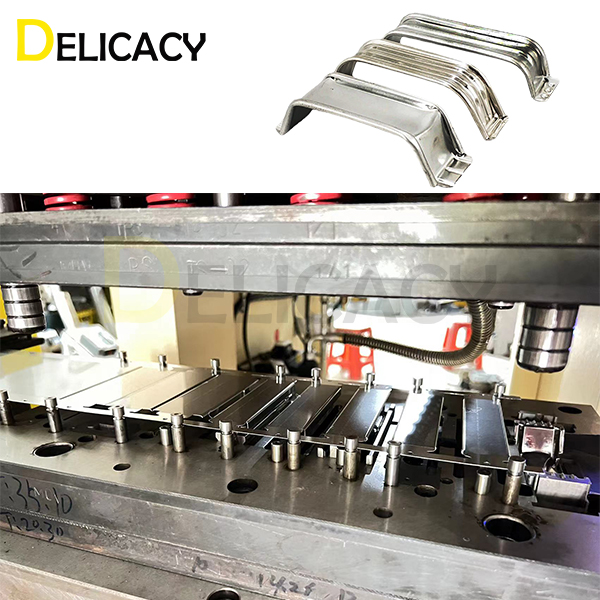

Progressive toolings
Complete set of 9-cavity progressive toolings for automatic production of 4L rectangular can top handles

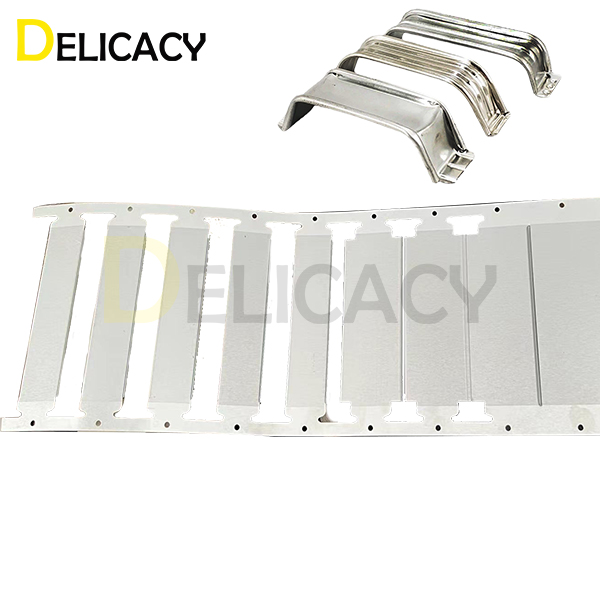

Including operations for positioning, trimming, notching, pre-curling, straightening, curling, bulging, cutting and forming
With automatic handle outlet inspection system
Max. production speed: 50-60 pcs/min
Including operations for positioning, trimming, notching, pre-curling, straightening, curling, bulging, cutting and forming
With automatic handle outlet inspection system
Max. production speed: 50-60 pcs/min
The automatic 4L rectangular can top handle making line is a production system that automates the process of creating top handles for 4-liter rectangular cans.
The process usually starts with a raw material roll, which is fed into a machine that forms the material into a handle shape. The handle blanks are then cut to the appropriate size and transported to the next machine, where they are bent and shaped to fit the top of a 4L rectangular can.
The automatic 4L rectangular can top handle making line offers several advantages over manual methods of handle production. It can significantly increase production speed and efficiency, reduce labor costs, and improve overall product consistency and quality.
Additionally, automation can help reduce the risk of workplace injuries associated with manual handle production, such as repetitive motion injuries and cuts from handling sharp materials.
Overall, an automatic 4L rectangular can top handle making line can be a valuable investment for companies looking to improve their handle production process and increase their bottom line.
